Getting Started with Reveal SDK for ASP.NET

Step 1 - Create a New ASP.NET Web App​

The steps below describe how to create a new ASP.NET Core Web App project. If you want to add the Reveal SDK to an existing application, go to Step 2.

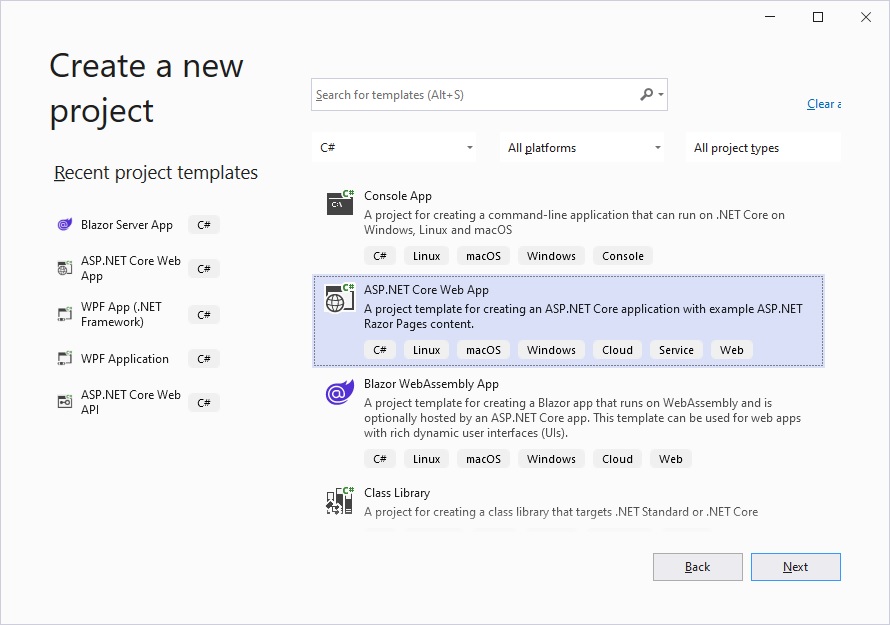

1 - Start Visual Studio and click Create a new project on the start page, select the ASP.NET Core Web App template, and click Next.

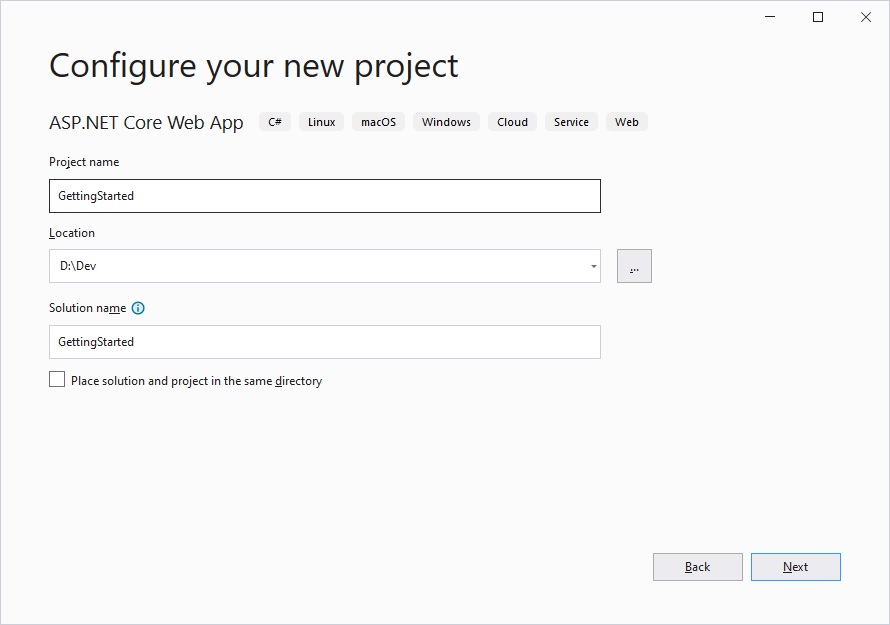

2 - Provide a project name and location, and click Next.

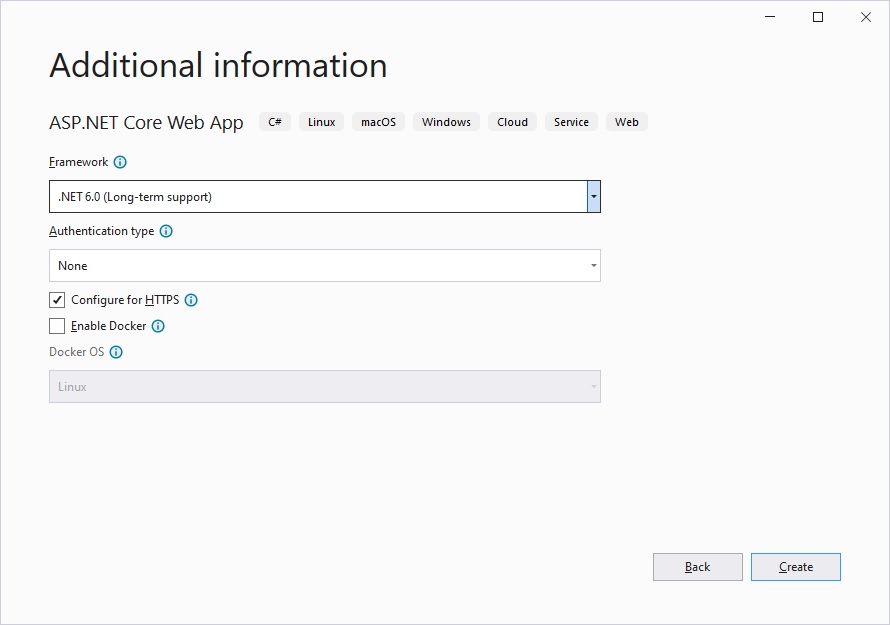

3 - Choose your framework, authentication type, and Docker options, and then click Create.

Step 2 - Add Reveal SDK​

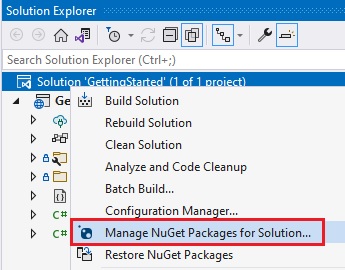

1 - Right click the Solution, or Project, and select Manage NuGet Packages for Solution.

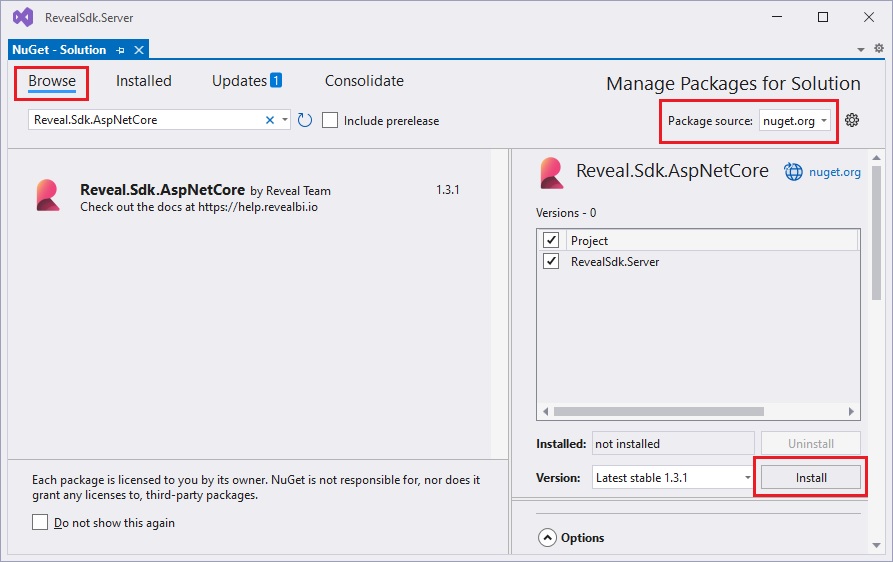

2 - In the package manager dialog, open the Browse tab, select the Infragistics (Local) package source, and install the Reveal.Sdk.AspNetCore NuGet package into the project.

3 - Open and modify the Program.cs file to add the namespace using Reveal.Sdk;. Then, add the call to IMcvBuilder.AddReveal() as follows:

using Reveal.Sdk;

builder.Services.AddRazorPages().AddReveal();

Step 3 - Add Reveal JavaScript API​

1 - Open and modify the Pages/Shared/_Layout.cshtml file to include the infragistics.reveal.js script at the bottom of the page just before the closing </body> tag, but after the jquery.min.js script.

<script src="https://dl.revealbi.io/reveal/libs/1.7.5/infragistics.reveal.js"></script>

2 - Install the remaining Reveal JavaScript API dependencies:

  • Jquery 2.2 or greater
<script src="~/lib/jquery/dist/jquery.min.js"></script>
  • Day.js 1.8.15 or greater
<script src="https://unpkg.com/dayjs@1.8.21/dayjs.min.js"></script>

The final _Layout.cshtml files should look similar to this:

Pages/Shared/_Layout.cshtml
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>@ViewData["Title"] - GettingStarted</title>
    <link rel="stylesheet" href="~/lib/bootstrap/dist/css/bootstrap.min.css" />
    <link rel="stylesheet" href="~/css/site.css" asp-append-version="true" />
    <link rel="stylesheet" href="~/GettingStarted.styles.css" asp-append-version="true" />
</head>
<body>
    <header>
        <nav class="navbar navbar-expand-sm navbar-toggleable-sm navbar-light bg-white border-bottom box-shadow mb-3">
            <div class="container">
                <a class="navbar-brand" asp-area="" asp-page="/Index">GettingStarted</a>
                <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target=".navbar-collapse" aria-controls="navbarSupportedContent"
                        aria-expanded="false" aria-label="Toggle navigation">
                    <span class="navbar-toggler-icon"></span>
                </button>
                <div class="navbar-collapse collapse d-sm-inline-flex justify-content-between">
                    <ul class="navbar-nav flex-grow-1">
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-page="/Index">Home</a>
                        </li>
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-page="/Privacy">Privacy</a>
                        </li>
                    </ul>
                </div>
            </div>
        </nav>
    </header>
    <div class="container">
        <main role="main" class="pb-3">
            @RenderBody()
        </main>
    </div>

    <footer class="border-top footer text-muted">
        <div class="container">
            &copy; 2022 - GettingStarted - <a asp-area="" asp-page="/Privacy">Privacy</a>
        </div>
    </footer>

    <script src="~/lib/jquery/dist/jquery.min.js"></script>
    <script src="~/lib/bootstrap/dist/js/bootstrap.bundle.min.js"></script>
    <script src="~/js/site.js" asp-append-version="true"></script>

    <script src="https://unpkg.com/dayjs@1.8.21/dayjs.min.js"></script>
    <script src="https://dl.revealbi.io/reveal/libs/1.7.5/infragistics.reveal.js"></script>

    @await RenderSectionAsync("Scripts", required: false)
</body>
</html>

Step 4 - Initialize the Reveal view​

1 - Open and modify the Pages/Index.cshtml file and add a new <div> tag and set the id to revealView.

<div id="revealView" style="height: 800px; width: 100%;"></div>

2 - Add a Scripts section at the bottom of the Index.cshtml file and initialize the revealView.

@section Scripts
{
    <script type="text/javascript">
        var revealView = new $.ig.RevealView("#revealView");
    </script>
}

Next, we instantiate a new instance of the RevealView by creating a new $.ig.RevealView and passing in the #revealView selector.

The final Index.cshtml file should look like this:

@page
@model IndexModel
@{
    ViewData["Title"] = "Home page";
}

<div id="revealView" style="height: 800px; width: 100%;"></div>

@section Scripts
{
    <script type="text/javascript">
        var revealView = new $.ig.RevealView("#revealView");
    </script>
}

Step 5 - Run the Application​

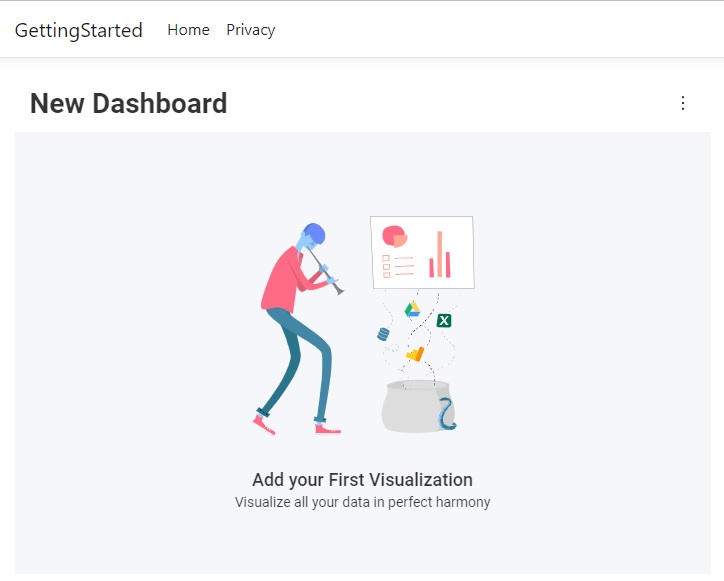

Press F5 to run the application.

Congratulations! You have written your first Reveal SDK application.

Get the Code

The source code to this sample can be found on GitHub.
